Sugar Mills - Sugar Grinding Plants

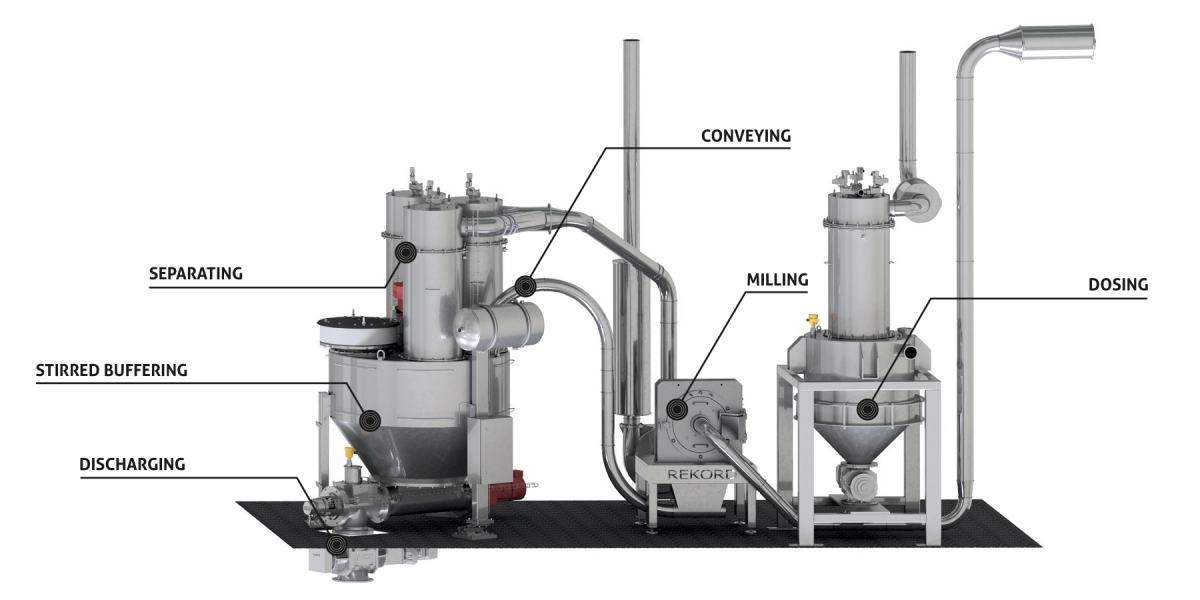

JEHMLICH REKORD sugar mills and grinding plants with integrated buffer containers are industrial systems for producing high-quality icing sugar products. The design assures low-temperature sugar grinding in continuous or batch mode. The icing sugar fineness is set to customer specifications and ranges from very fine qualities of D90 ≤ 18 μm to standard market products with D90 ≤ 75 μm or coarser. Feed mode can be continuous, from silo, bags or big bags. Our compact systems have integrated buffer containers with agitation systems and discharge screw to provide exactly the volume of icing sugar needed on site in every moment. Our systems are delivered in ATEX conformity (2014/34/EU). Ask us for individual plant layouts for your specific capacities and fineness targets.

Available Types & Configurations

Type

REKORD A

REKORD B Compact

REKORD B

REKORD C

REKORD D

REKORD D-2SSt

Max. Capacity [kg/h]

100 - 300

600

300 - 1200

1200 - 2000

2000 - 3000

3000 - 6000

Standard fineness (D90)

75 µm

75 µm

75 µm

75 µm

75 µm

75 µm

Maximum Fineness (D90)

18 µm

75 µm

18 µm

18 µm

18 µm

18 µm

Standard elements and configuration options

  • Buffer container, volume 200 liters (net) with agitator and discharge screw, ATEX design

  • Buffer container, volume 1500 liters (net) with agitator and discharge screw, ATEX design

  • Buffer with agitation system and discharge screw

  • Feed continuous (silo, pneumatic), optionally with all-metal or magnetic separator

  • Feed batch-wise from bags or big bags with ergonomic bag emptying device incl. protective sieve and magnetic separator

  • Icing sugar output continuous into pneumatic line

  • Icing sugar output to bags/big bags/mixer/other

  • Icing sugar output by calibrated weighing system for recipe applications

  • Explosion protection / ATEX conformity (2014/34/EU)

  • SIEMENS controls and energy efficiency drives

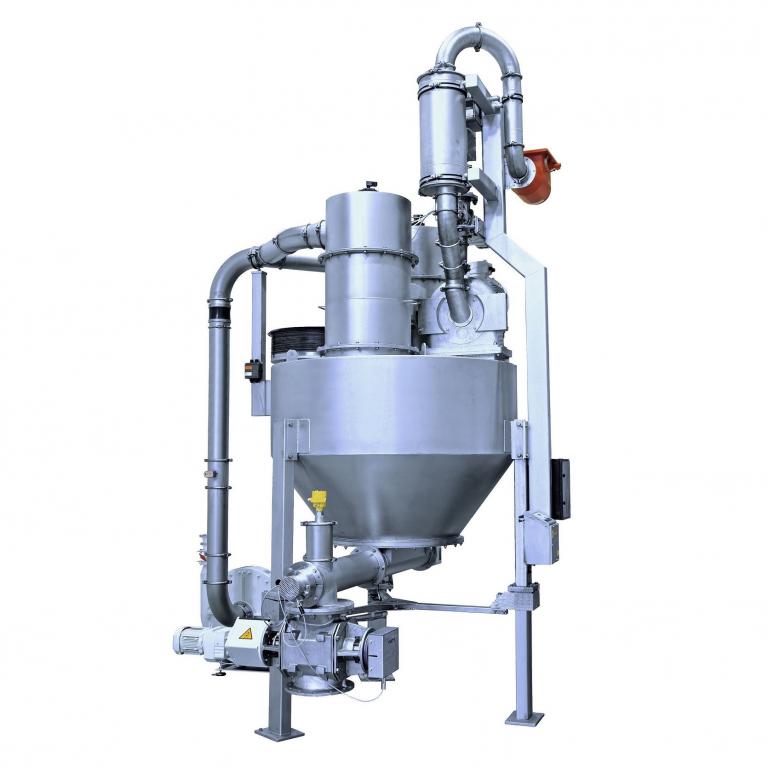

Standard configurations: integrated REKORD sugar grinding plants


Type COMPEX 212-630

JEHMLICH COMPEX grinding plants combine a compact layout and pressure proof design for grinding potential dust explosive products. The entire grinding system is 10 bar pressure shock resistant. The product is fed and removed via pressure shock resistant and ignition proof rotary valves. The air recirculation makes filter systems for product separation obsolete.

COMPEX type

212

315

450

630

Max. Capacity [kg/h]

400

1000

2000

3000

Standard fineness (D90)

≤ 75 µm

≤ 75 µm

≤ 75 µm

≤ 75 µm

Technical Data

  • Product fineness adjustable via speed of the mill

  • Energy-efficient drives, PLC SIEMENS S7

  • Grinding elements: Pin rotor / stator, beater disc with sieve insert

  • Sensors for monitoring of process parameters, temperatures, vibrations and internal pressure

  • Conformity with ATEX directive 2014/34/EU

  • Conformity with EC machinery directive 2006/42/EC und EGV 1935/2004


Type REKORD D-SSt-ex

Flexible high-performance grinder for producing up to 3000 kg/h of fine icing sugar.

Integrated 1500 liter (net) icing sugar buffer container.

Functional Design

  • Dosing rotary valve (ATEX protection system) and optional all-metal separator

  • Optional: supplementary starch dosing

  • Integrated REKORD D pin milling unit

  • Icing sugar buffer (net volume 1500 liter)

  • Icing sugar buffer with agitation system to ensure free flow of icing sugar

  • Discharge screw for managed output of icing sugar

  • ATEX rotary valve for connection to pneumatic line or bag filling

  • Fill level monitoring and weighing system

  • Air stream for low temperature grinding and high fineness < 100 microns

  • Dedusting of cooling air with automatic filter cleaning

  • Layout with closed air recirculation for fineness > 100 microns

Technical Data

  • Production mode: batch wise or continuous

  • Capacity: up to 3000 kg/h

  • Standard grain size: 90 % ≤ 75 µm (200 Mesh)

  • Finest achievable grain size: 90 % ≤ 18 µm (800 Mesh)

  • Rated power: 45 kW; 3~ 400 V; 50 Hz

  • Installation in ATEX Zones 21, 22

  • SIEMENS control


Type REKORD BT/B-SSt-ex

Flexible high-performance grinder for producing up to 1200 kg/h of fine icing sugar.

Integrated 200 or 1500 liter icing sugar buffer container.

Functional Design

  • Dosing rotary valve (ATEX protection system) and optional all-metal separator

  • Integrated REKORD B turbo or pin milling unit

  • Icing sugar buffer (net volume 200 or 1500 liter)

  • Icing sugar buffer with agitation system to ensure free flow of icing sugar

  • Discharge screw for managed output of icing sugar

  • ATEX rotary valve for connection to pneumatic line or bag filling

  • Fill level monitoring and weighing system

  • Air stream for low temperature grinding and high fineness < 100 microns

  • Dedusting of cooling air with automatic filter cleaning

  • Layout with closed air recirculation for fineness > 100 microns

Technical Data

  • Production mode: batch wise or continuous

  • Capacity: up to 1200 kg/h

  • Standard grain size: 90 % ≤ 75 µm (200 Mesh)

  • Finest achievable grain size: 90 % ≤ 18 µm (800 Mesh)

  • Rated power: 29 kW; 3~ 400 V; 50 Hz

  • Installation in ATEX Zones 21, 22

  • SIEMENS control

  • Sugar Grinding Plant

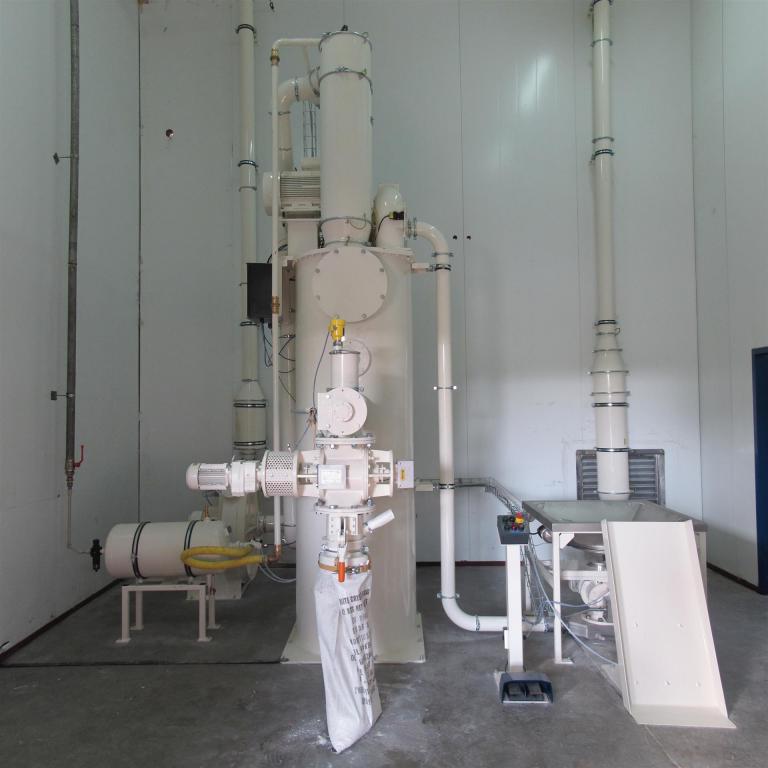

  • Sugar Grinding Plant REKORD BT-ex

We are very satisfied with the quality of JEHMLICH equipment. We are going to apply JEHMLICH grinding plants into our projects in future.

Yury Kishchenko / Chief Process Engineer of Dosing System Development, Dozitek LLC., Russia

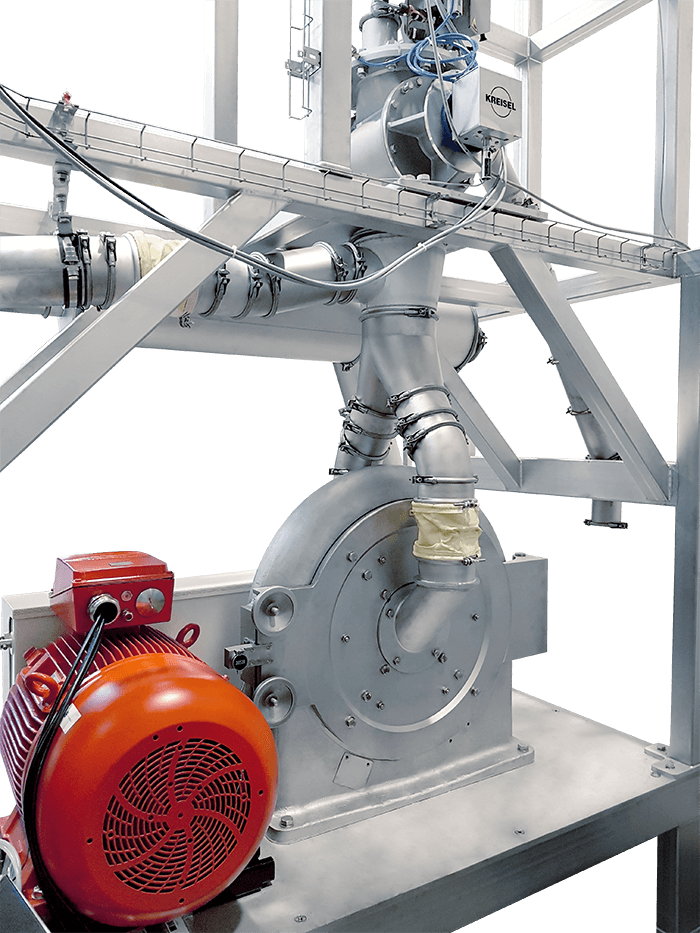

Type REKORD D-2SSt-ex

Flexible high-performance grinder for producing up to 6000 kg/h of fine icing sugar.

Integrated 1500 liter (net) icing sugar buffer container.

Functional Design

  • Dosing rotary valve (ATEX protection system) and optional all-metal separator

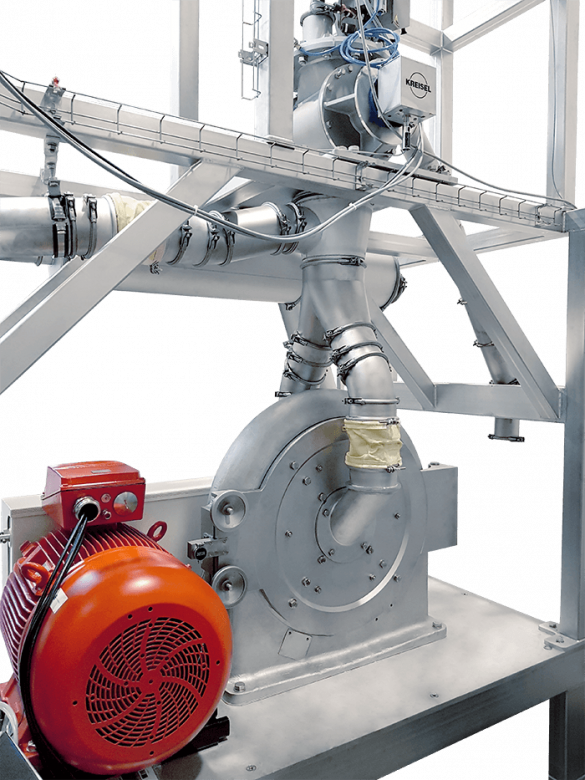

  • Integrated REKORD D double pin milling unit with 2 grinding chambers

  • Icing sugar buffer (net volume 1500 liter)

  • Icing sugar buffer with agitation system to ensure free flow of icing sugar

  • discharge screw for output of 6000 kg/h and ATEX rotary valve

  • Fill level monitoring and weighing system

  • Air stream for low temperature grinding and high fineness < 100 microns

  • Dedusting of cooling air with automatic filter cleaning

  • Layout with closed air recirculation for fineness > 100 microns

Technical Data

  • Production mode: batch wise or continuous

  • Capacity: up to 6000 kg/h

  • Standard grain size: 90 % ≤ 75 µm (200 Mesh)

  • Finest achievable grain size: 90 % ≤ 18 µm (800 Mesh)

  • Rated power: 80 kW; 3~ 400 V; 50 Hz

  • Installation in ATEX Zones 21, 22

  • SIEMENS control


Compact Sugar Grinder Type REKORD B-ex

Compact milling system for smaller icing sugar production quantities up to 600 kg/h. Discharge continuous to pneumatic line, bags or mobile containers for flexible icing sugar use.

10 bar pressure shock resistant design in ATEX conformity.

Functional Design

  • Dosing rotary valve (ATEX protection system) for continuous operation

  • Crystal sugar feed buffer for batch-wise operation

  • Integrated REKORD B pin milling unit

  • Layout with closed air recirculation

  • Discharge rotary valve for continuous discharge

  • Icing sugar container for batch-wise production

Technical Data

  • Production mode: batch-wise or continuous

  • Capacity batch-wise: up to 400 kg/h, capacity continuous: up to 600 kg/h

  • Standard Grain Size: 90 % ≤ 75 µm (200 Mesh); 50 % ≤ 25 µm (400 Mesh)

  • Rated Power: 15,5 kW; 3~ 400 V; 50 Hz

  • Installation in ATEX Zones 21, 22

  • SIEMENS control

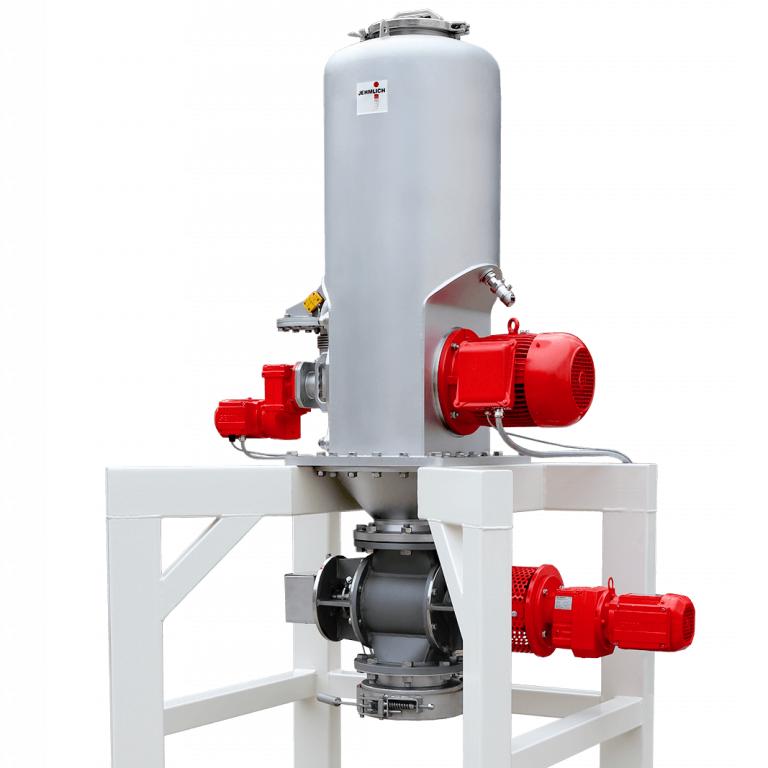

  • Compact Mill REKORD B-ex

Sugar mills for integration

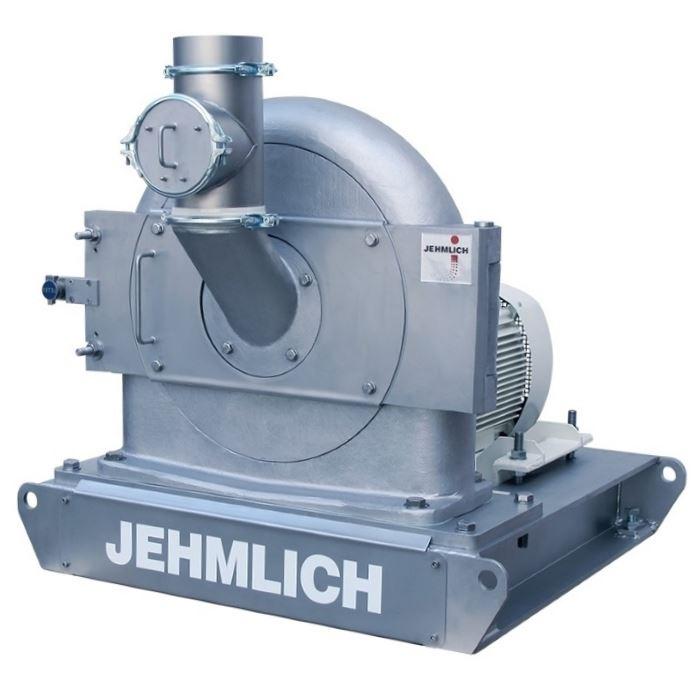

Turbo Mill REKORD C in Stainless Steel

Sugar Mill Type REKORD C

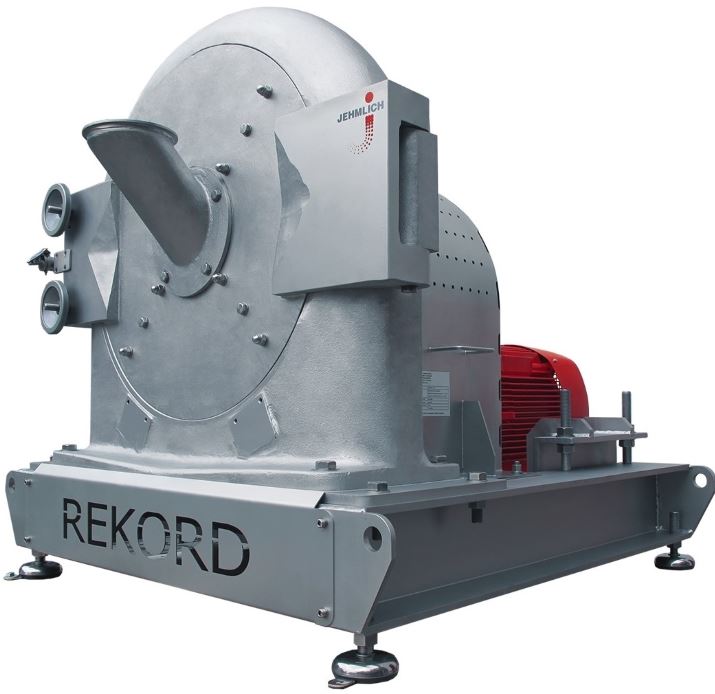

Sugar Mill Type REKORD D

Sugar Mill Type REKORD 450
